Product Description

Basic Specifications
Model NO.
KCT-16
Phase
Single
Operation
Indoor
Usage
Protection, Measurement
Window Size
16 mm
Input Range
5-100A
Output
mA Level / 0.333V
Accuracy
0.5 / 1.0
Insulation
UL94-V0 Plastic Case
Installation
Clamp-on / Split Core
Split Core Current Sensor
Clamp on Current Transformer
Key Features
✓
Self-locking Structure: Safe, easy to install, and highly portable.
✓
Wide Inner Window: Allows for easy clamping of large cables or bus-bars.
✓
Versatile Sizing: Accommodates a wide range of existing electrical installations.
✓
High Safety Standard: Isolated plastic case recognized according to UL94-V0.
✓
Multiple Plug Options: Compatible with Wires, Audio, and Power plugs (5 types).
Product Banner
Technical Specifications
Model KCT-16
Current Ratio 100A/33.3mA 100A/40mA 120A/40mA 200A/66.7mA 100-200A/0.333V
Primary Current 100A 100A 120A 200A 100-200A
Output 33.3mA 40mA 40mA 66.7mA 0.333V
Turns Ratio 3000:1 2500:1 3000:1 3000:1 /
Accuracy Class 0.5 / 1.0
Operating Temp -20ºC ~ +50ºC, ≤85%RH (No condensation)
Note: Current Ratios listed are standard; customization is available upon request.

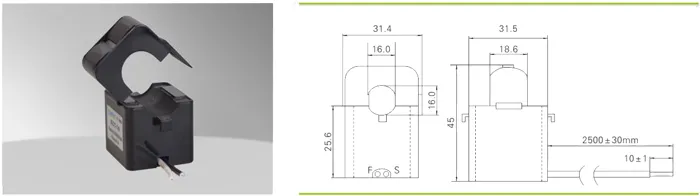

Dimensions & Graph

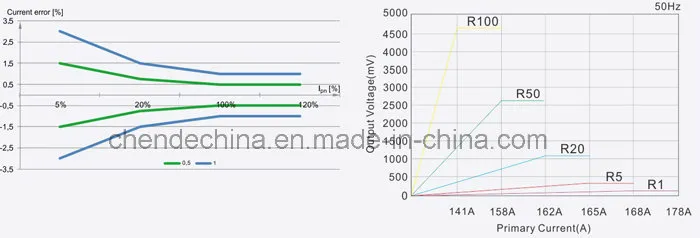

Technical Graph
Product Applications
●
Current measurement, monitoring, and protection for electrical wiring.
●
Power measurement for motors, lighting, air compressors, and HVAC systems.
●
Automation and control systems integration.
●
Energy monitoring devices and relay protection equipment.

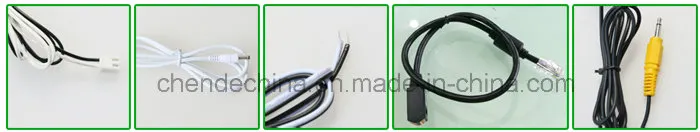

Connector Options
Connector Choices
Order & Shipping Information
Shipping Details:
  • Express: UPS, DHL, FedEx, TNT, EMS.
  • Delivery: 3-7 days depending on destination.
  • Lead Time: 6-10 days for standard orders.
Payment & Warranty:
  • Accepted: T/T, Western Union.
  • Terms: 30% deposit, 70% before shipping.
  • Warranty: 1-year comprehensive warranty.
Frequently Asked Questions
Q1: What is the window size of the KCT-16 current transformer? A: The KCT-16 features a 16mm inner window, making it suitable for various cable sizes.
Q2: Can the current ratio be customized? A: Yes, while we have standard ratios like 100A/40mA, we can customize the ratio according to your specific requirements.
Q3: Is this current transformer suitable for outdoor installation? A: The KCT-16 is designed for indoor operation conditions within a temperature range of -20ºC to +50ºC.
Q4: What safety certifications does the shell material have? A: The unit uses an isolated plastic case that is recognized according to the UL94-V0 flammability standard.
Q5: What is the accuracy class of this sensor? A: This model provides high accuracy with a class rating of 0.5 or 1.0, depending on the specific configuration.
Q6: How long is the warranty period for the KCT-16? A: We provide a 1-year warranty from the date of delivery for all our current transformer products.
