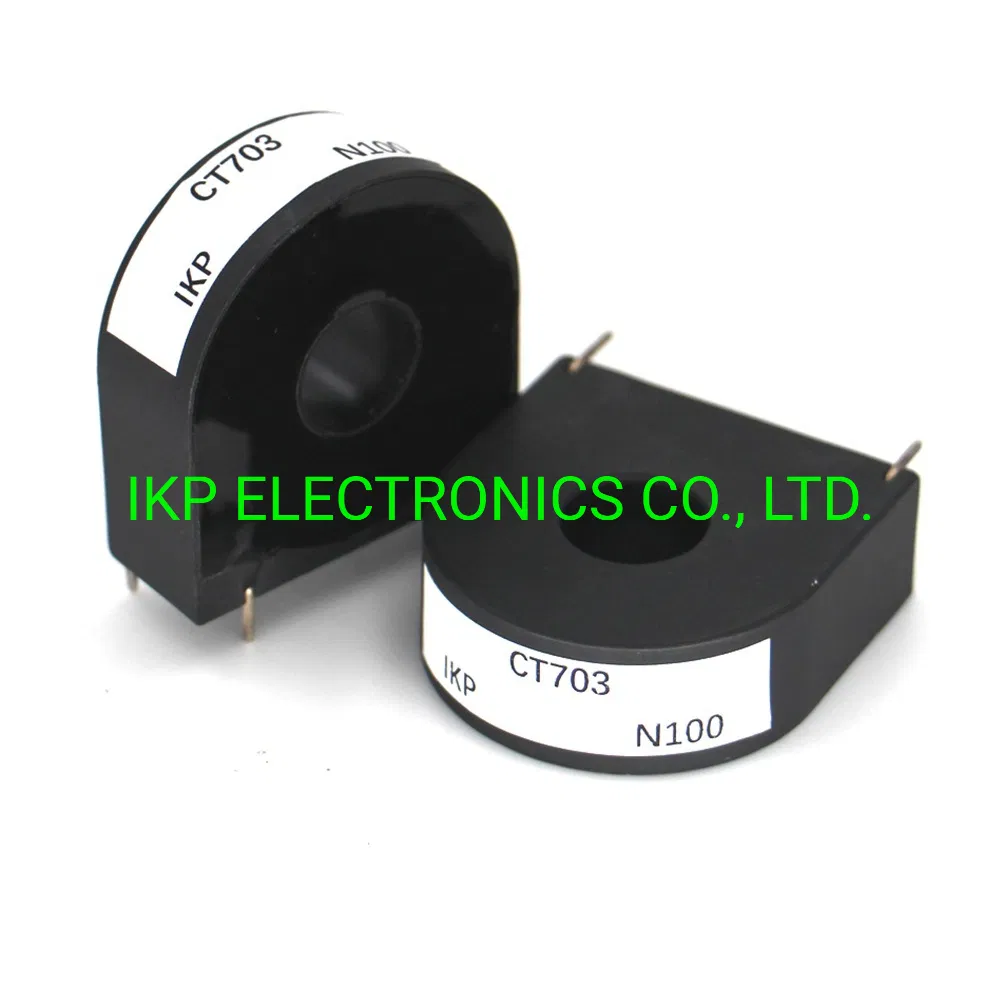

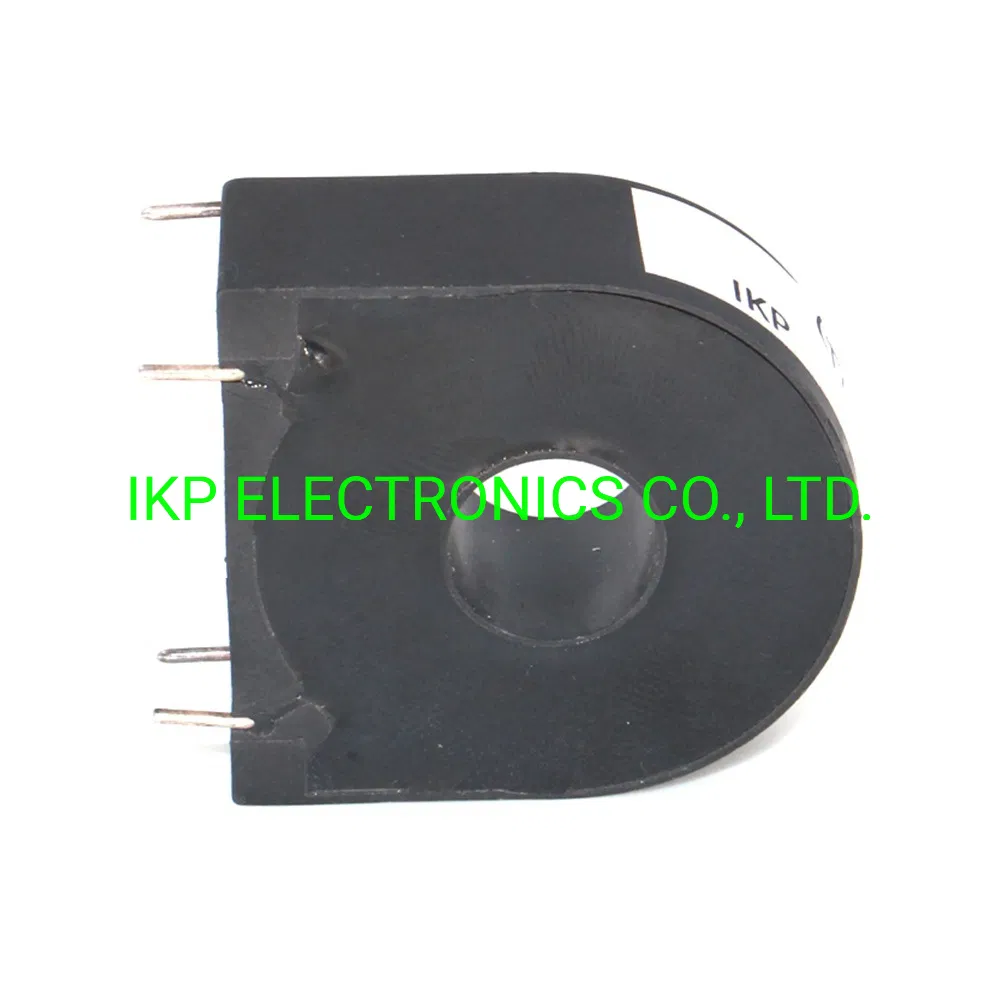

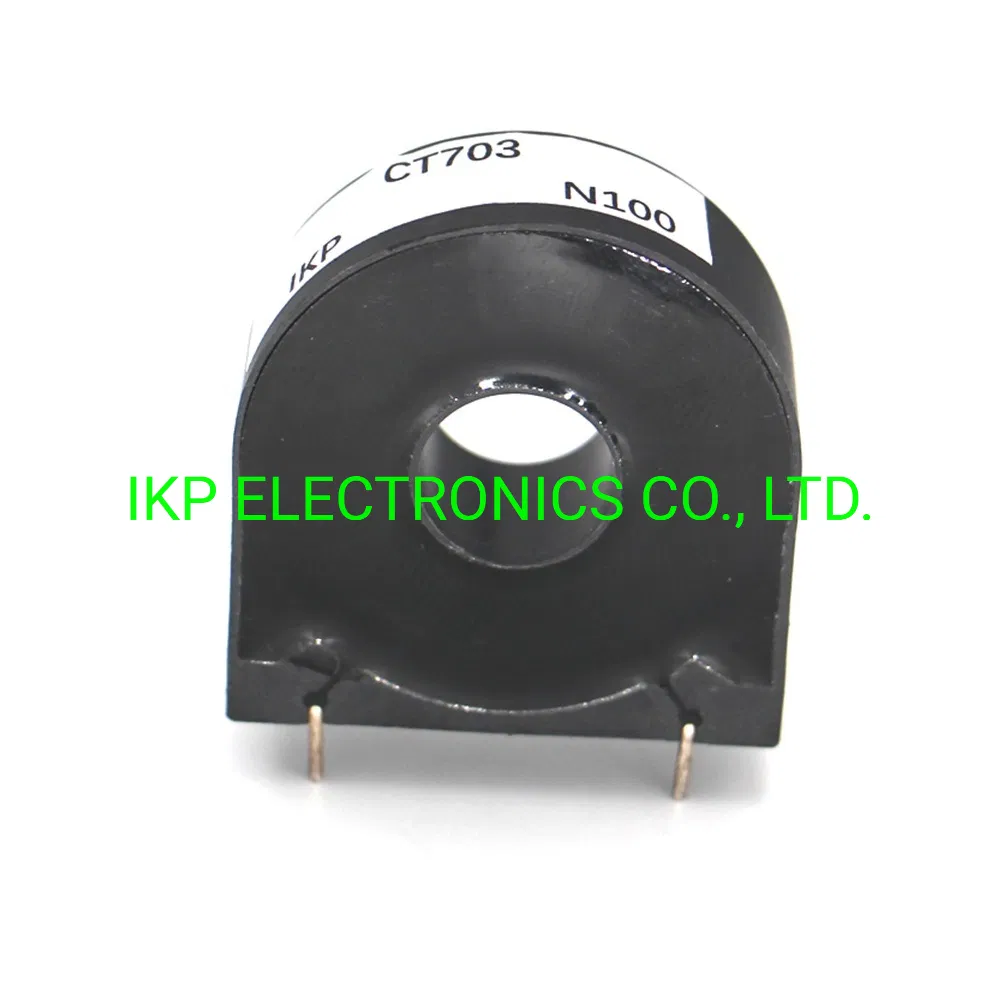

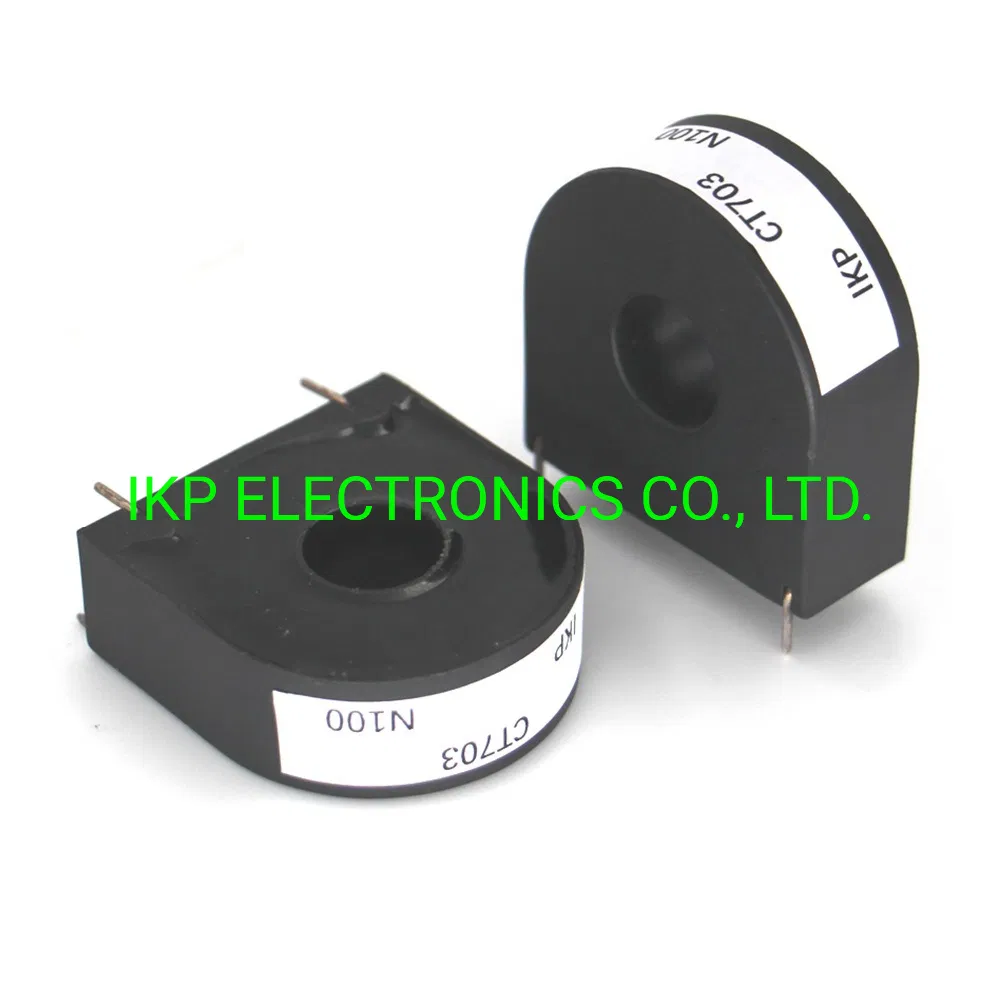

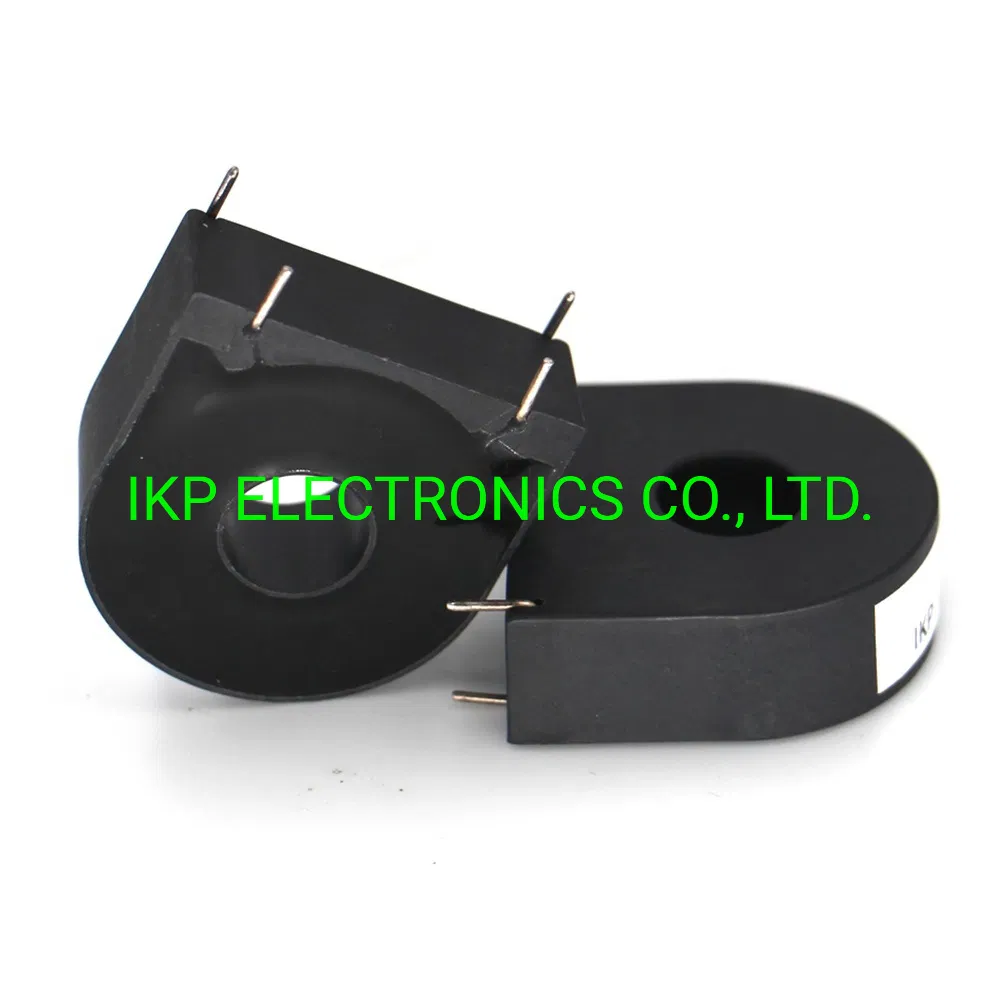

Vertical Pin Type PCB Mount Miniature Precision Current Transformer (PCT703)
Vertical Pin Type PCB Mount Miniature Precision Current Transformer (PCT703)
Vertical Pin Type PCB Mount Miniature Precision Current Transformer (PCT703)
Vertical Pin Type PCB Mount Miniature Precision Current Transformer (PCT703)
Vertical Pin Type PCB Mount Miniature Precision Current Transformer (PCT703)
1 / 5
Vertical Pin Type PCB Mount Miniature Precision Current Transformer (PCT703)
Vertical Pin Type PCB Mount Miniature Precision Current Transformer (PCT703)
Vertical Pin Type PCB Mount Miniature Precision Current Transformer (PCT703)
Vertical Pin Type PCB Mount Miniature Precision Current Transformer (PCT703)
Vertical Pin Type PCB Mount Miniature Precision Current Transformer (PCT703)

Vertical Pin Type PCB Mount Miniature Precision Current Transformer (PCT703)

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
IKP-PCT703-1
Process
Injection
Material
Metal
Accuracy Grade
0.1G
Application
Measuring Meters
IP Rating
IP20
Customized
Available
Transport Package
CTN
Specification
CT703-1
Origin
China
HS Code
85045000
Production Capacity
80,000,000 pieces/Year

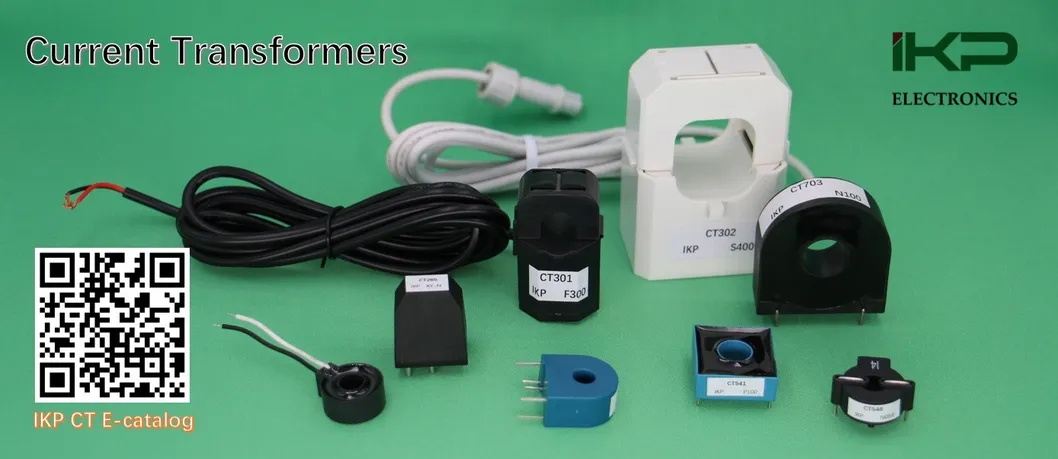

Precision Current Transformer Overview

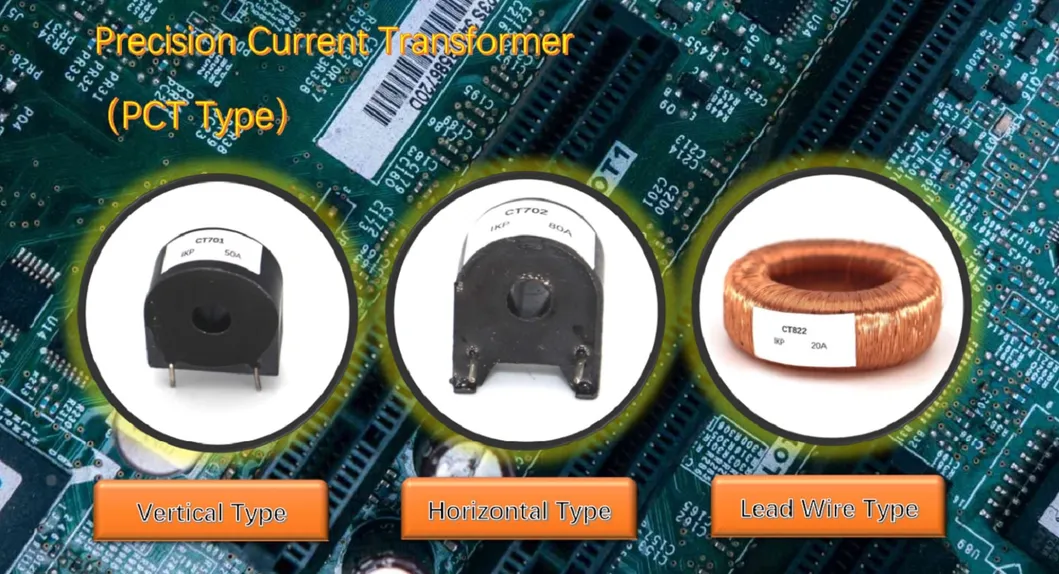

Vertical Pin Type PCB Mount Miniature Current Transformer
Product Features
◈High precision, wide linearity range for output current
◈High potential voltage (4000Vac/1min), outstanding stability
◈Operation Frequency: 20--400Hz
◈High linearity with DC immunity characteristics
◈Low profile, elegant looking, directly installed to PCB
◈Meet the standard of IEC62053 and ANSI12.20
◈Full compliance with ROHS requirements
Main Applications
✔Electronic energy meters and power transducers
✔Precision power meters and monitoring devices
✔Over current protection circuits for motors
✔General electrical appliance safety monitoring

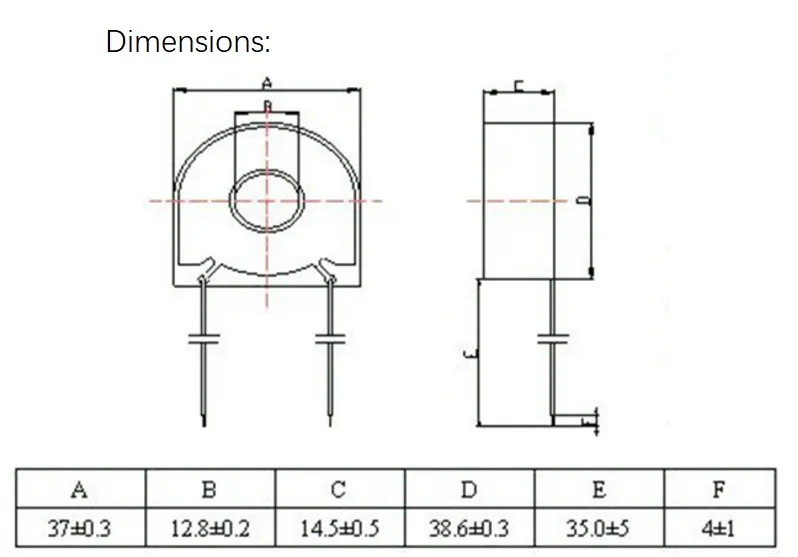

Technical Dimensions
Technical Parameters
MODEL RATED CURRENT (A) CURRENT RATIO ACCURACY CLASS LOAD RES (Ω) FREQ (Hz) DIMENSIONS (mm)
ID OD HT
PCT21550500~3500:10.1~2%3050/6015.43010
PCT21660500~3500:10.1~2%3050/608.629.213
PCT52720500~3500:10.1~2%4050/607.6188
PCT70160500~3500:10.1~2%2050/60723.411
PCT703130500~3500:10.1~2%5050/6012.837.214
PCT80150500~3500:10.1~2%10050/60284517.2
PCT90110500~3500:10.1~2%2050/6018.55020
Current Transformer Detail 1
Current Transformer Detail 2
Current Transformer Detail 3
Current Transformer Detail 4
Current Transformer Detail 5
Frequently Asked Questions
Q1: What is the maximum insulation voltage for this series?
The series supports a high potential voltage of up to 4000Vac for 1 minute, ensuring outstanding stability and safety.
Q2: Can these current transformers be mounted directly onto a PCB?
Yes, these are vertical pin-type miniature transformers designed specifically for direct PCB installation.
Q3: What international standards do these products comply with?
They meet the IEC62053 and ANSI12.20 standards, and are fully compliant with ROHS environmental requirements.
Q4: What is the typical accuracy range?
The accuracy grade ranges from 0.1% to 2%, depending on the specific model and load requirements.
Q5: What is the operating frequency range?
The transformers are designed to operate efficiently within a frequency range of 20Hz to 400Hz.
